MDF

protezioni modulari sistema mdf

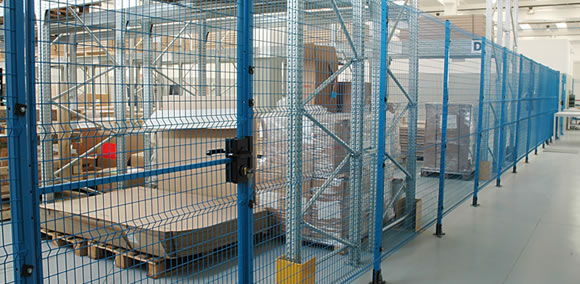

PERIMETER PROTECTION SERIES – MDF

logo_cePerimeter protection system that does not require through screws. A system that solves the problem of fastening the shaped mesh panel without the use of through screws or threaded inserts.

Easy-assembly guard system – allows assembly by one operative by avoiding the use of linear, angular or three-way uprights.

A brilliant innovation by the SATECH technical department.

Panels

Shaped Mesh
Mesh: 30 x 60 x 3 mm
Painting: Epoxy polyester powder

Uprights

Dimensions: 40 x 40 x 2
Baseplate: Forged with 3/4 anchor points
Painting: Epoxy polyester powder		 aggancio sistema mdf

info_red CAPTIVE FASTENING available on request

25_tempo_it

colori_it

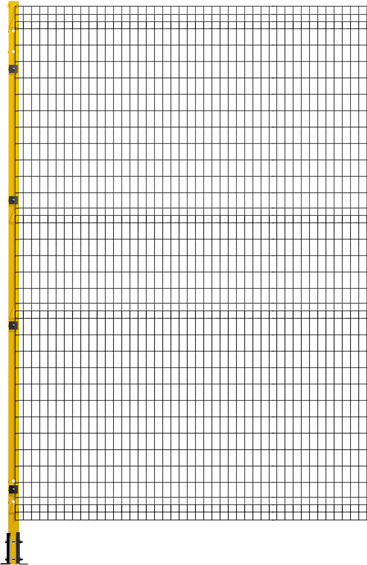

 sistemi/mdf/mdf_lat.jpg

> Data sheets

> Movies > Photo gallery

MDF

connecting element of mdf systemThe uprights of the Satech-patented MDF protection system are provided with two connecting elements between upright and panel:

Upper hooking allows the operator to "hang" the panel to the upright leaving his hands free for the fastening operation.

Fastening operation is achieved by a specially-shaped bracket and screw allowing the operator to fasten the mesh from the outside of the guard and not, as is required by traditional systems, to insert the through screw and then tighten the nut from the rear upright.

A fast and easy operation!
