Body Guard

body guard - sistema anticaduta uomo

FALL-PREVENTION SYSTEM SERIES – BODYGUARD

logo_cePrevents personnel falling from galleries or elevated areas
This modular system is compact and can be completely disassembled, providing speed of assembly and greater flexibility in use. It is manufactured in compliance with the relevant ISO international standards.

Structure:: 2 horizontal beams and a kick plate
Tubes:: 40 x 40 x 2 mm
Assembly brackets: self-centring and self-locking
Floor anchorage: horizontal and vertical
Painting: Epoxy polyester powder

colori_it
attacco
sistemi/body_guard/bodyguard_lat.jpg
> Data sheets > Movies > Photo gallery

sistemi/body_guard/bodyguard_lat1.jpg

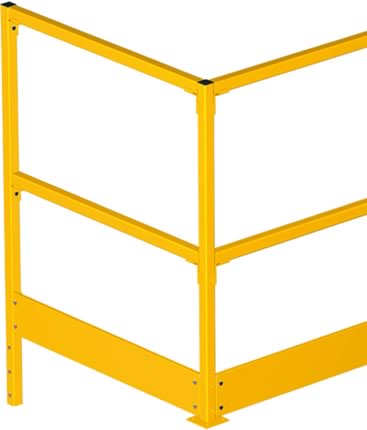

Angular assembly


sistemi/body_guard/1.jpg

40 x 40 tubular uprights and beams.

Linear assembly


sistemi/body_guard/2.jpg

40 x 40 tubular uprights and beams.

Front anchorage


sistemi/body_guard/3.jpg

Front anchorage to the gallery by means of screws.

Floor anchorage


sistemi/body_guard/4.jpg

Floor anchorage with baseplate
