Single-leaf doors
 |
Single-leaf doors.
700-1500 mm opening.
Available for Basic, Strong, Green Fast, MDF systems.
Wide range of options available on request.
|
|
Double leaf-doors
 |
Double-leaf doors.
1400-3000 mm opening.
Available for Basic, Strong, Green Fast, MDF systems.
Wide range of options available on request.
|
|
Double opposing sliding doors
 |
Double opposing sliding doors with upper guide.
700-3000 mm opening.
Available for Basic, Strong, Green Fast, MDF systems.
Wide range of options available on request.
|
|
Sliding doors with upper guide
 |
Single sliding doors.
700-3000 mm opening.
Available for Basic, Strong, Green Fast, MDF systems.
Wide range of options available on request. |
|
Sliding doors without guide
 |
Sliding doors without guide.
1500-8000 mm opening.
Compatible with all SATECH assembly systems.
Motorization available on request.
Wide range of options available on request. |
|
Sliding doors with lower guide
 |
Sliding doors with lower guide.
700-3000 mm opening.
Available for Basic, Strong, Green Fast, MDF systems.
Wide range of options available on request. |
|
Opposing sliding doors with upper guide
 |
Opposing sliding doors with upper guide.
1400-3000 mm opening.
Available for Basic, Strong, Green Fast, MDF systems.
Wide range of options available on request. |
|
Single sliding doors with telescopic guide
 |
Single sliding doors with Satech’s telescopic guide.
700-1500 mm opening.
Available for Basic, Strong, Green Fast systems.
Wide range of options available on request. |
|
Opposing sliding doors with telescopic guide
 |
Opposing sliding doors with telescopic guide.
1400-3000 mm opening.
Available for Basic, Strong, Green Fast systems.
Wide range of options available on request. |
|
Folding doors
 |
Folding Doors.
1400-3000 mm opening.
Available for Basic, Strong, Green Fast, MDF systems.
Wide range of options available on request. |
|
Special automatic
 |
Standard solutions are provided with electromechanical motors and mechanical or electronic adjustment of movement parameters. Pneumatic operation, including vertical, can be supplied on request.
Compatible with all Satech assembly systems. |
|
Special telescopic
 |
Satech designs and produces special doors with multiple functions which can be supplied in the following combinations:
> With panels sliding on linear guides.
> With folding panels.
> With leaf elements in sliding doors with linear guides.
> With combined movement of sliding and leaf doors.
Compatible with Basic, Strong, Green Fast systems |
|

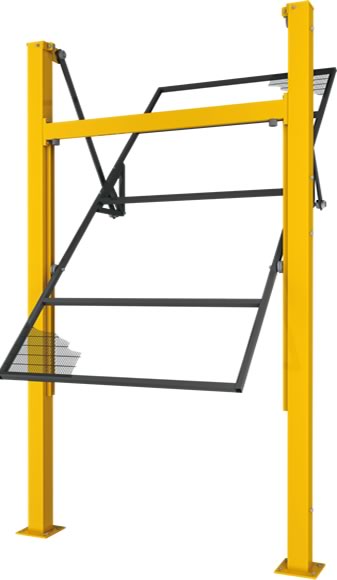

Special vertical
 |

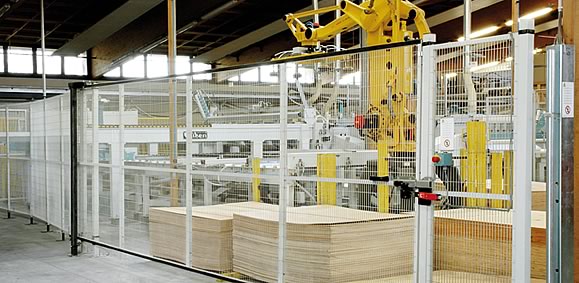

Robotised cells in industrial automation often dictate tight perimeters for the protection guards, with vertical movement of the door panels. Satech's original door design featured vertical operation to optimise the use of factory space – assuring customers of maximum safety and functionality.
Compatible with all SATECH assembly systems.. |
|
Special large accesses
 |
Satech's technical department has considerable experience in developing special solutions to allow large openings and has produced combined sliding/hinged doors with openings of more than 10 metres. Easy and reliable operation in service is guaranteed by the use of extremely durable components.
Compatible with all SATECH assembly systems..
|
|
Options
> Ergonomic handle.
> Pairs of hinges / pivot pins.
> Upper crosspiece.
> Upper crosspiece with ledge.
> Magnetic locking system.
> Ground supporting wheel.
> Ground stop.
> Panic lock.
> Key lock.
> 3rd level lock.
> 4th level lock.
|
> Bolt with padlock.
> Universal brackets for safety microswitches.
> Hinged safety microswitch.
> Clutch safety microswitch.
> Galvanized steel upper guide.
> Steel trolleys with threaded connection.
> Lower slideways.
> Upper slideways.
> Galvanized lower guide.
> Steel wheels with V-groove.
> Satech telescopic guides.
> Tyred wheels.
> Electric operation.
|
|
Complementary
The range of Satech doors has been developed to meet customer demands, however complex, including sliding doors without upper or lower guides to allow the passage of lift trucks, with openings up to 6 metres. A comprehensive range of (optional) accessories allows for varying safety levels and locking systems, as well as doors adapted to meet specific requirements. More than 350 combinations are already available.
