Basic

sistema basic - protezioni perimetrali

PERIMETER PROTECTION SERIES – BASIC

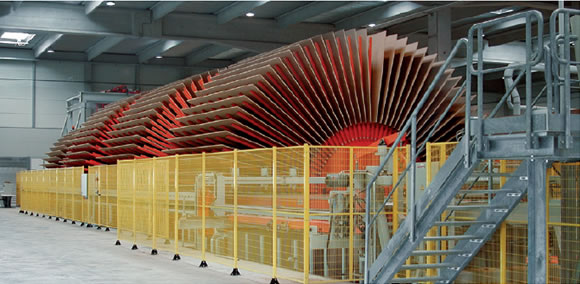

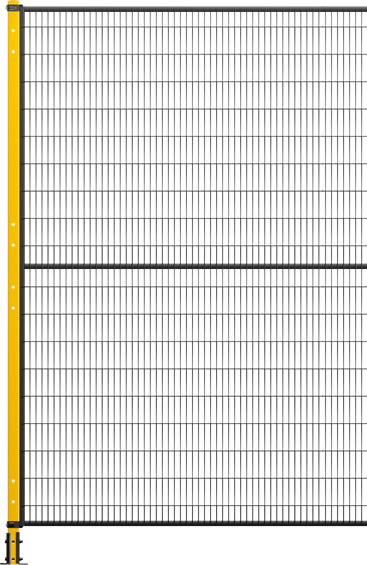

logo_ceProtection and accident prevention system consisting of 40X40 uprights and 20X20 panels with 20x20 frames, connected by screws or Satech patented fast assembly clamps. It is the standard method used in all guards for plant and machinery.

Panels

Frame: 20 x 20
Mesh: 22 x 100 x 3 mm
Painting: Epoxy polyester powder


Uprights

Dimensions: 40 x 40 x 2
Baseplate: Forged with 3/4 anchor points
Painting: Epoxy polyester powder		 sistema_vite piedino

info_red CAPTIVE FASTENING available on request

25_tempo_it

colori_it

 basic system of satech

> Data sheets

> Movies > Photo gallery

Clip – Basic

basic clip patented Satech has developed a connecting system between panel and upright that achieves remarkable time savings during assembly and height adjustment. It also allows easy reinstallation of the guard after it has been removed for non-routine maintenance. EN 953+A1 6.4.3.1 b.
